HiCR::channel::variableSize::Base Class Reference

#include <base.hpp>

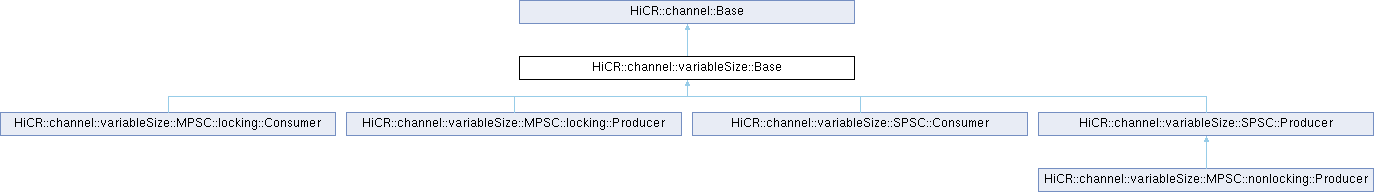

Inheritance diagram for HiCR::channel::variableSize::Base:

Protected Member Functions
	Base (CommunicationManager &communicationManager, const std::shared_ptr< LocalMemorySlot > &coordinationBufferForCounts, const std::shared_ptr< LocalMemorySlot > &coordinationBufferForPayloads, const size_t capacity, const size_t payloadCapacity)
__INLINE__ auto	getCircularBufferForCounts () const
__INLINE__ auto	getCircularBufferForPayloads () const
__INLINE__ auto	getCoordinationBufferForCounts () const
__INLINE__ auto	getCoordinationBufferForPayloads () const
Protected Member Functions inherited from HiCR::channel::Base
	Base (CommunicationManager &communicationManager, const std::shared_ptr< LocalMemorySlot > &coordinationBuffer, const size_t tokenSize, const size_t capacity)
__INLINE__ CommunicationManager *	getCommunicationManager () const
__INLINE__ auto	getCoordinationBuffer () const

Additional Inherited Members
Public Member Functions inherited from HiCR::channel::Base
__INLINE__ size_t	getTokenSize () const noexcept
__INLINE__ size_t	getDepth () const noexcept
__INLINE__ bool	isFull () const noexcept
__INLINE__ bool	isEmpty () const noexcept
__INLINE__ auto	getCircularBuffer () const noexcept
Static Public Member Functions inherited from HiCR::channel::Base
static __INLINE__ size_t	getCoordinationBufferSize () noexcept
static __INLINE__ void	initializeCoordinationBuffer (const std::shared_ptr< LocalMemorySlot > &coordinationBuffer)
static __INLINE__ size_t	getTokenBufferSize (const size_t tokenSize, const size_t capacity) noexcept

Detailed Description

A HiCR variable-size channel base

Constructor & Destructor Documentation

Base()

HiCR::channel::variableSize::Base::Base ( CommunicationManager &  communicationManager, const std::shared_ptr< LocalMemorySlot > &  coordinationBufferForCounts, const std::shared_ptr< LocalMemorySlot > &  coordinationBufferForPayloads, const size_t  capacity, const size_t  payloadCapacity  )

inlineprotected

The constructor of the extended base Channel class.

It requires the user to provide the allocated memory slots for the exchange (data) and coordination buffers.

Parameters

[in]	communicationManager	The backend's memory manager to facilitate communication between the producer and consumer sides
[in]	coordinationBufferForCounts	This is a small buffer that enables the consumer to signal how many payloads (as a count) it has popped.
[in]	coordinationBufferForPayloads	This is a small buffer that enables the consumer to signal how many bytes from the payload data it has popped.
[in]	capacity	The maximum number of elements (possibly different-sized) that can be held by this channel
[in]	payloadCapacity	The maximum number of total bytes (including all different sized elements) that will be held by this channel

Note

: The token size in var-size channels is used only internally, and is passed as having a type size_t (with size sizeof(size_t)) The key extension to the base channel class is the use of an extended circular buffer instead of a circular buffer. This is because we need to manage payload head and tail in addition to the head an tail pointers for different elements.

Member Function Documentation

getCircularBufferForCounts()

__INLINE__ auto HiCR::channel::variableSize::Base::getCircularBufferForCounts ( ) const

inlineprotected

Gets the internal circular buffer used for token counts

Returns

the internal circular buffer used for token counts

getCircularBufferForPayloads()

__INLINE__ auto HiCR::channel::variableSize::Base::getCircularBufferForPayloads ( ) const

inlineprotected

Gets the internal circular buffer used for token payloads

Returns

the internal circular buffer used for token payloads

getCoordinationBufferForCounts()

__INLINE__ auto HiCR::channel::variableSize::Base::getCoordinationBufferForCounts ( ) const

inlineprotected

Gets the internal coordination buffer used for token counts

Returns

the internal coordination buffer used for token counts

getCoordinationBufferForPayloads()

__INLINE__ auto HiCR::channel::variableSize::Base::getCoordinationBufferForPayloads ( ) const

inlineprotected

Gets the internal coordination buffer used for token payloads

Returns

the internal coordination buffer used for token payloads

---

The documentation for this class was generated from the following file:

• /home/runner/work/HiCR/HiCR/include/hicr/frontends/channel/variableSize/base.hpp
