Base Class Reference

HiCR: HiCR::channel::fixedSize::Base Class Reference

HiCR

#include <base.hpp>

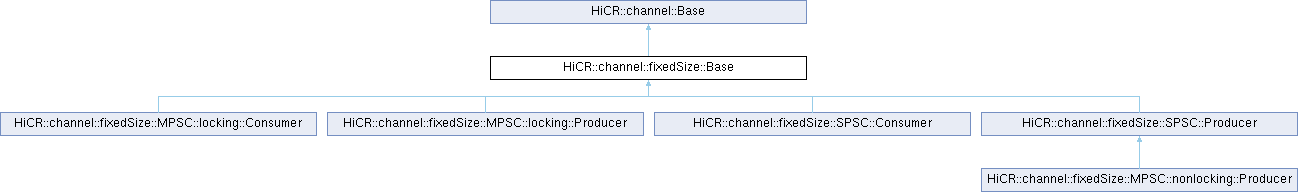

Inheritance diagram for HiCR::channel::fixedSize::Base:

Protected Member Functions
	Base (CommunicationManager &coordinationCommunicationManager, CommunicationManager &payloadCommunicationManager, const std::shared_ptr< LocalMemorySlot > &coordinationBuffer, const size_t tokenSize, const size_t capacity)

Protected Member Functions inherited from HiCR::channel::Base
	Base (CommunicationManager &coordinationCommunicationManager, CommunicationManager &payloadCommunicationManager, const std::shared_ptr< LocalMemorySlot > &coordinationBuffer, const size_t tokenSize, const size_t capacity)

__INLINE__ CommunicationManager *	getPayloadCommunicationManager () const

__INLINE__ CommunicationManager *	getCoordinationCommunicationManager () const

__INLINE__ auto	getCoordinationBuffer () const

Additional Inherited Members
Public Member Functions inherited from HiCR::channel::Base
__INLINE__ size_t	getTokenSize () const noexcept

__INLINE__ size_t	getDepth () const noexcept

__INLINE__ bool	isFull () const noexcept

__INLINE__ bool	isEmpty () const noexcept

__INLINE__ auto	getCircularBuffer () const noexcept

Static Public Member Functions inherited from HiCR::channel::Base
static __INLINE__ size_t	getCoordinationBufferSize () noexcept

static __INLINE__ void	initializeCoordinationBuffer (const std::shared_ptr< LocalMemorySlot > &coordinationBuffer)

static __INLINE__ size_t	getTokenBufferSize (const size_t tokenSize, const size_t capacity) noexcept

Detailed Description

Base class definition for a HiCR fixed-size channel Fixed-size version is identical to the base channel.

HiCR::channel::fixedSize::Base::Base	(	CommunicationManager &	coordinationCommunicationManager,
		CommunicationManager &	payloadCommunicationManager,
		const std::shared_ptr< LocalMemorySlot > &	coordinationBuffer,
		const size_t	tokenSize,
		const size_t	capacity
	)

inlineprotected

The constructor of the Channel class.

It requires the user to provide the allocated memory slots for the exchange (data) and coordination buffers.

Parameters

[in]	coordinationCommunicationManager	The backend's memory manager to facilitate communication between the producer and consumer coordination buffers
[in]	payloadCommunicationManager	The backend's memory manager to facilitate communication between the producer and consumer payload buffers
[in]	coordinationBuffer	This is a small buffer that needs to be allocated at the producer side. enables the consumer to signal how many tokens it has popped. It may also be used for other coordination signals.
[in]	tokenSize	The size of each token.
[in]	capacity	The maximum number of tokens that will be held by this channel

The documentation for this class was generated from the following file:
